Technical Specifications

Functions:                         4 available
Spindle Type:                    Flat spring loaded spindle
Material:                            Zinc alloy
Door thickness:                200 5mm – 65mm (3/16”- 2 1/2”)
Door material:                   Suitable for wooden doors
Buttons:                             14 stainless steel buttons
Non handed:                      Locks will fit doors hung on the left or right
Fitting:                                Easy fit
Fitting Options:                 Vertical
Finish:                                 Stainless Steel and Polished Brass
Codes:                                 8, 191 non sequential codes available
Code storage:                    Single code
Key override:                     Available to order on any function. Keyed alike if required



Models:                              200, 210, 255, 290
Mortice Latch:                  255 supplied with ‘Hold open’ function allowing free entry. Function can be disabled
Mortice Deadbolt:            210 bolt extends 25mm (1”) beyond door edge when locked

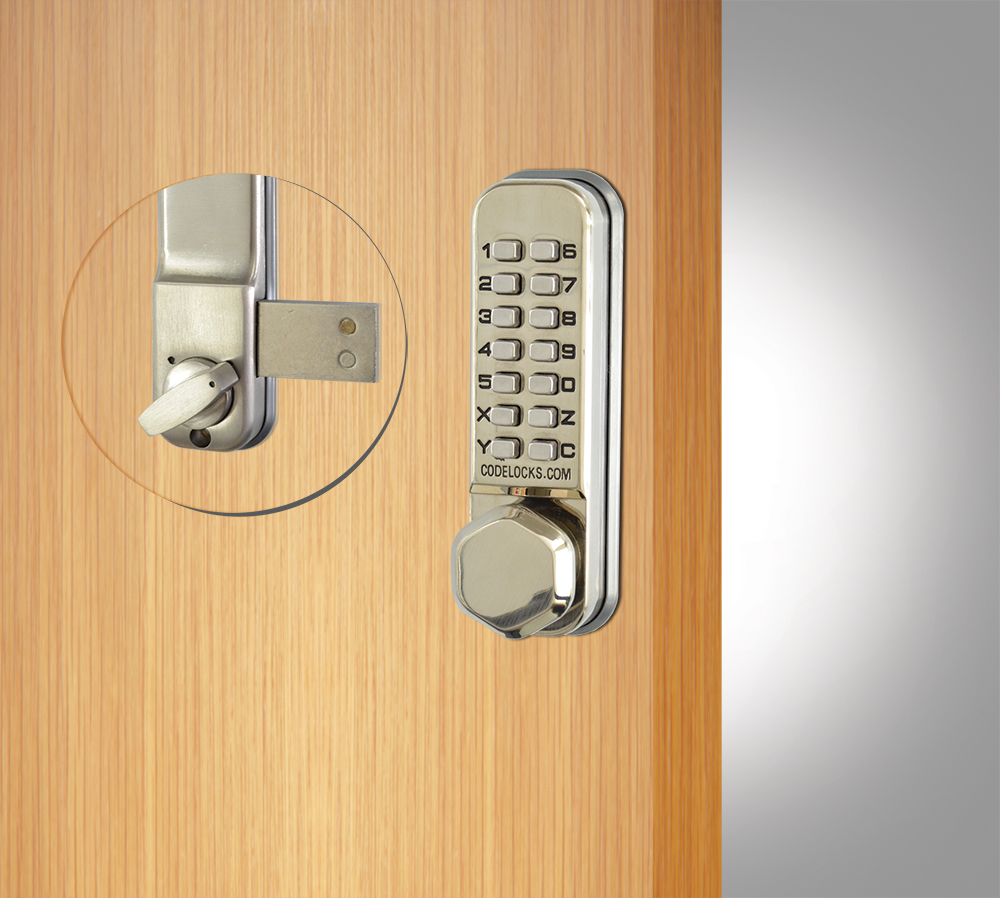

Surface Deadbolt:            200 Stainless Steel finish only. Bolt is moved manually by outside knob after code input and freely by inside knob
Back to back:                    290 mortice latch is supplied with two code plates to provide coded access in both directions
Latch:                                 Light duty with stainless steel latchbolt head, with “anit-shim” plunger, 60mm (23/8”) backset requires 25mm (1”) hole, 82mm (31/4”) deep
Also available to order:  50mm (2”) backset latch requires 25 x 72mm (1”x 27/8”) hole. 70mm (23/4”) backset latch require 25 x 92mm (1”x 35/16”) hole

Useful Information

PB Polished Brass, SS Stainless Steel


CL200, CL210, CL255, CL290
