Brand Codelocks

Technical Specifications

Functions:                     3 available
Spindle Type:               Flat spring loaded spindle
Material:                       Zinc alloy
Door thickness:           35mm – 65mm (13/8”- 21/2”)
Buttons:                        14 stainless steel buttons
Non handed:                Locks will fit doors hung on the left or right
Fitting:                          Easy fit
Fitting Options:           Vertical
Finish:                           Silver Grey and Polished Brass
Codes:                           8, 191 non sequential codes available
Code storage:              Single code
Key override:                Not available


Models:                                     100, 155, 190
Mortice Latch:                         155 supplied with ‘Hold open’ function allowing free entry Function can be disabled

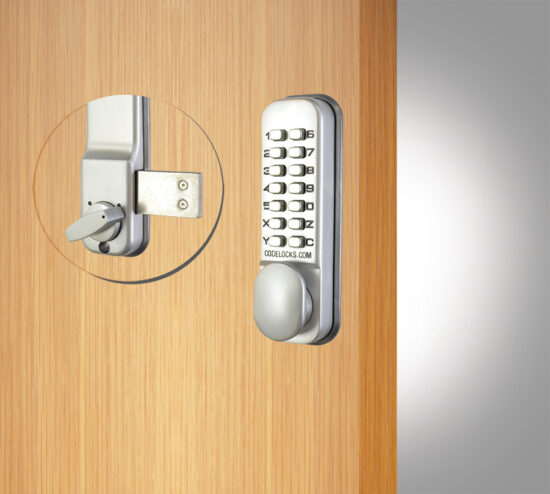

Surface Deadbolt:                   100 Silver Grey finish only. Bolt is moved manually by outside knob after code input and freely by inside knob at all times
Back to back:                           190 mortice latch is supplied with two code plates to provide coded access in both directions
Latch:                                        Light duty with stainless steel latchbolt head, with “anit-shim” plunger, 60mm (23/8”) backset requires 25mm (1”) hole, 82mm (31/4”)                                                          deep
Also available to order:         50mm (2”) backset latch requires 25 x 72mm (1”x 27/8”) hole 70mm (23/4”) backset latch require 25 x 92mm (1”x 35/16”) hole

Useful Information

CL100, CL155, CL160, CL190


PB Polished Brass, SG Silver Grey
